回轉執行器-液壓 KMH

KMH  液壓多回轉執行器

Hydraulic multi-turn actuator

產品簡介：

KMH系列的液壓多回轉執行器，直接安裝在閘閥和截止閥等閥門上，由液壓馬達與傘齒輪蝸輪蝸桿箱組成動力，進行閥門開關的液壓多回轉執行機構，具有運作平穩，扭矩大，噪音小，達到IP68防護等級，可以進行水下浸沒安裝，扭矩從150Nm到7,000Nm



KMH series Hydraulic multi-turn actuator, direct install on the gate valves and global valves etc, by using spiral bevel gear and thrust bearing, this type of actuator can run smoothly, and high output torque ,low noise and high reliable, can reach IP68.its torque range from 150Nm to 7,000Nm.



● Application用途: Vessel’s fore peak ballast tank inner side installed screw down valve etc船舶艏尖艙等

● Hydraulic pressure工作壓力: 60~150Bar

● Hydraulic oil 液壓油選用： 32~68#，（recommended推薦46# hydraulic oil）

● Output torque輸出扭矩: 150Nm~7000Nm

● Output thrust輸出推力: 50KN~900KN

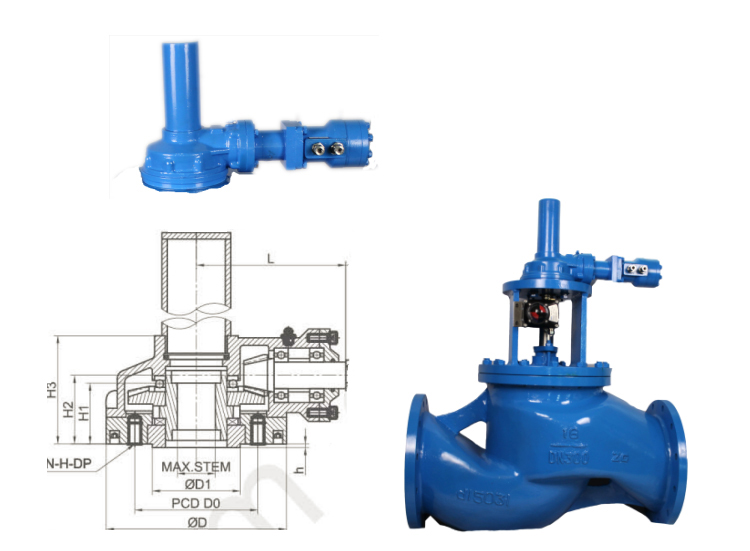

Dimension & Torque List 外形尺寸&扭矩表

Model	KMH300	KMH500	KMH1000	KMH1500	KMH2000	KMH3000	KMH4500	KMH7000
Max-thrust (KN)	90	135	180	250	280	380	550	900
Max-torque (Nm)	300	500	1000	15000	2000	3000	4500	7000
Max-stem (mm)	42	52	60	70	80	95	110	130
Flange	F12	F14	F16	F20	F25	F30	F35	F40
PCD- Do	125	140	165	205	254	298	356	406
N-H-DP	4-M12*18	4-M16*24	4-M20*30	8-M16*24	8-M16*24	8-M20*30	8-M30*45	8-M36*54
H1	45	70	75	90	100	120	150	180
H2	85	95	115	115	125	165	225	290
H3	110	125	140	140	155	190	250	320
L	155	170	180	200	225	280	355	365
Convex -D1xh	85x3	100x4	130x4	140x5	200x5	230x5	260x5	300x8
Weight-Kg	25	32	36	41	57	103	210	300

請聯系我們，如需更多細節或要求
