角行程系列
電動執行器-角行程
KEA 電動執行器-角行程
Electric actuator –Angular travel Type

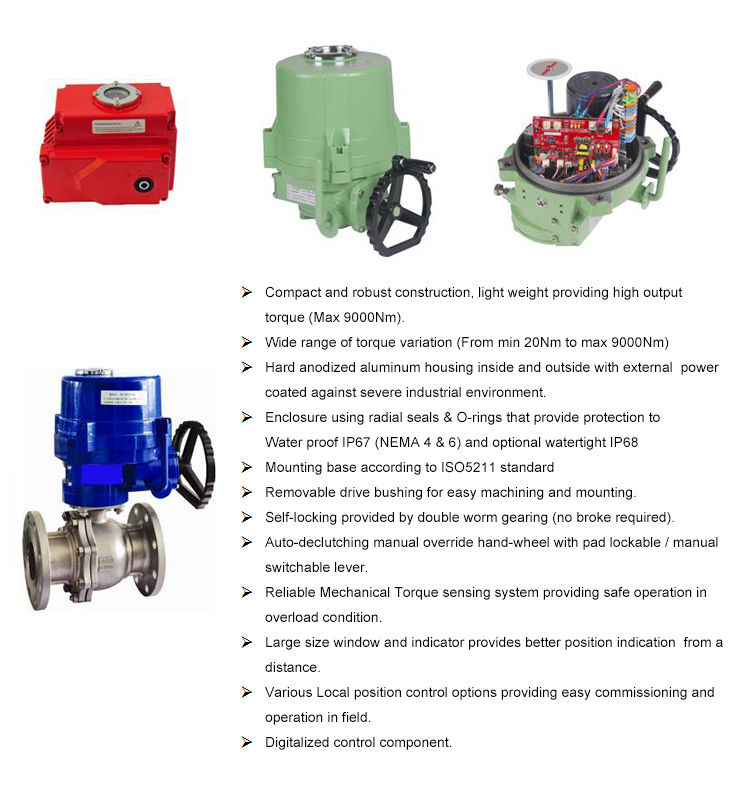

產品簡介：
KEA系列的電動執行器，是閥控系統中旋轉閥門作0~90o開關的角行程電動執行機構,，扭矩從20Nm到9,000Nm
KEA series angular travel type of electric actuator, Torque range from 20Nm to 9,000Nm.

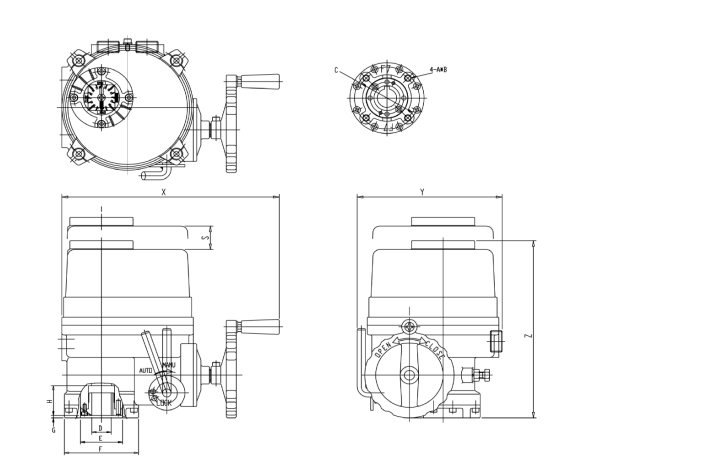

Dimension 外形尺寸圖
Model | Nm | D (sq) | E | S | X | Y | Z | ISO 5211 | Supply | Power-Watt | Current-A | Operating time-@ 50Hz-Sec | Wt- Kg |
KEA0020 | 25 | 11 | 18 | 50 | 89.4 | 89.4 | 97.5 | F03 | 220VAC | 15 | 0.08 | 11 | 1 |
KEA0040 | 40 | 14 | 30 | 50 | 122 | 114 | 129 | F03/F05 | 220VAC | 40 | 0.18 | 14 | 3 |
KEA0080 | 80 | 17 | 40 | 40 | 160 | 121 | 118 | F05/F07 | 220VAC | 115 | 0.52 | 16 | 3.5 |
KEA0100 | 100 | 20 | 50 | 100 | 258 | 172 | 220 | F07 | 220/380/440VAC | 114/255/404 | 0.52/0.43/0.59 | 21 | 7 |
KEA0160 | 160 | 23 | 59 | 115 | 338 | 229 | 259 | F07/F10 | 220/380/440VAC | 187/178/205 | 0.85/0.3/0.3 | 26 | 15 |
KEA0240 | 240 | 23 | 59 | 115 | 338 | 229 | 259 | F07/F10 | 220/380/440VAC | 191/190/220 | 0.87/0.32/0.32 | 26 | 15 |
KEA0350 | 350 | 34 | 80 | 145 | 357 | 244 | 288 | F10/F12 | 220/380/440VAC | 202/190/220 | 0.92/0.32/0.32 | 31 | 20 |
KEA0500 | 500 | 34 | 80 | 145 | 357 | 244 | 288 | F10/F12 | 220/380/440VAC | 330/308/378 | 1.5/0.52/0.55 | 31 | 20 |
KEA0800 | 800 | 40 | 95 | 170 | 380 | 287 | 313 | F12/F14 | 220/380/440VAC | 451/485/563 | 2.05/0.82/0.82 | 39 | 25 |
KEA1100 | 1100 | 40 | 95 | 170 | 380 | 287 | 313 | F12/F14 | 220/380/440VAC | 473/498/576 | 2.15/0.84/0.84 | 39 | 25 |
KEA2000 | 2000 | 64 | 135 | 225 | 440 | 375 | 385 | F16 | 220/380/440VAC | 650/888/1577 | 2.95/1.5/2.3 | 59 | 42 |
KEA3000 | 3000 | 64 | 135 | 225 | 440 | 375 | 385 | F16 | 220/380/440VAC | 825/948/1715 | 3.75/1.6/2.5 | 59 | 42 |
KEA6000 | 6000 | 100 | 216 | 225 | 516 | 417 | 668 | F25/F30 | 220/380/440VAC | 649/888/1578 | 2.95/1.5/2.3 | 178 | 152 |
KEA9000 | 9000 | 100 | 216 | 225 | 516 | 417 | 668 | F25/F30 | 220/380/440VAC | 825/948/1715 | 3.75/1.6/2.5 | 178 | 152 |
請聯系我們，如需更多細節或要求
