角行程系列
雙作用液壓角行程執行器-螺旋式

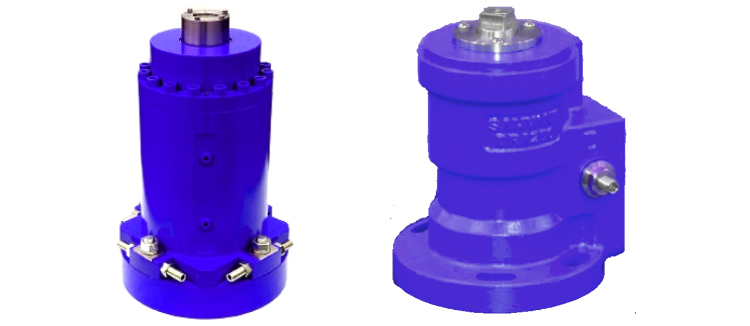

KHR 雙作用液壓角行程執行器-螺旋式
Double acting hydraulic actuator –Rotary type
產品簡介：
KHR系列的雙作用液壓執行器為螺旋線設計，是閥控系統中旋轉閥門作0~90o開關的執行機構,結構設計精密緊湊，體積小而扭矩較大，使用壽命長等特點。相同扭矩與齒輪齒條執行器比，體積重量減少近一半。扭矩從120Nm到32,000Nm
KHR series are based on the rotary design, torque range from 120Nm to 32,000Nm.
| Working pressure range | 60 to 135 Bar |
Rotation angle | 0~90o |
Closing direction (Top view) | Clockwise |
Connection to the valves | ISO 5211 |
Working temperature | -20?C to +80?C |
Hydraulic oil | Viscosity ranges 15 to 200 etc. thermal environment |
Surface finishing | Sandblast to S.A 2.5 |
Coating Color | Standard Blue （Other color selected by customer） |
Coating thickness | Marine primer coated with marine epoxy paint at 200 um |

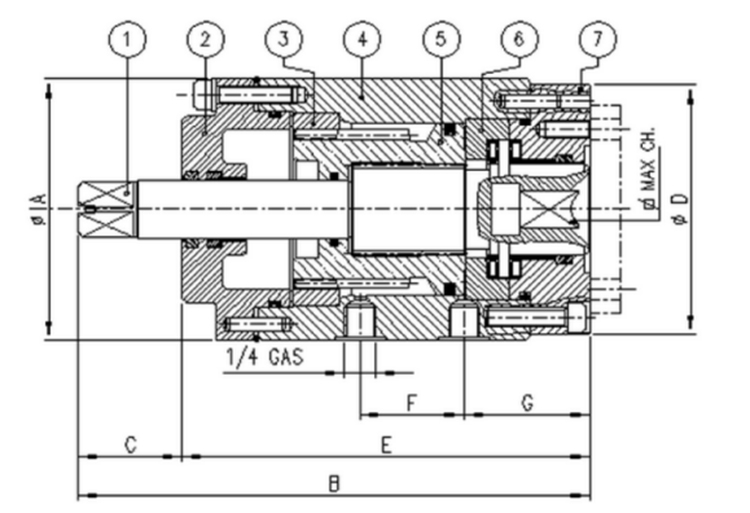

Dimension 外形尺寸圖
Model | ΦA(chǔ) | B | C | ΦD | E | F | G | CH | V | T (max) | WEIHT |
(max) | (ml) | (Nm) | (KG) | ||||||||
KHR120 | 76 | 129 | 19 | 95 | 110 | 35 | 57 | 16 | 28 | 120 | 4.4 |
KHR250 | 88 | 151 | 21 | 118 | 130 | 35 | 59 | 24 | 56 | 250 | 6.7 |
KHR500 | 110 | 173 | 20 | 134 | 153 | 35 | 63 | 30 | 102 | 500 | 11 |
KHR1000 | 135 | 194 | 15 | 162 | 179 | 35 | 66 | 36 | 200 | 1000 | 17 |
KHR2000 | 155 | 228 | 15 | 193 | 212 | 35 | 68 | 50 | 400 | 2000 | 29 |
KHR4000 | 207 | 290 | 30 | 258 | 260 | 35 | 74 | 63 | 800 | 4000 | 62 |
KHR8000 | 252 | 328 | 14 | 306 | 314 | 35 | 90 | 80 | 1600 | 8000 | 95 |
KHR16000 | 228 | 470 | 26 | 360 | 444 | 35 | 110 | 80 | 3200 | 12000 | 160 |
KHR32000 | 324 | 559 | 26 | 450 | 527 | 35 | 135 | 80 | 6400 | 32000 | 257 |
單作用執行器沒有展示，請聯系我們?nèi)粲行枨?/span>
